30755

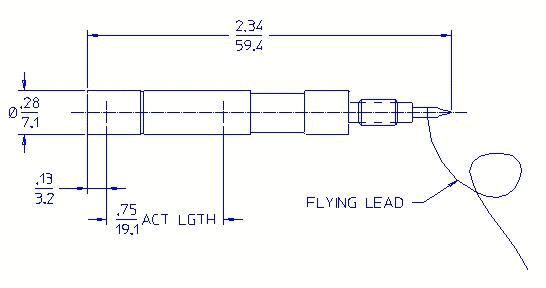

General Specifications

MAXIMUM LENGTH (INCH/MM) 2.24/56.9
MAXIMUM DIAMETER (INCH/MM) 0.28/7.1
CATHODE MATERIAL (INTERNAL/EXTERNAL) Nickel
EFFECTIVE DIAMETER (INCH/MM) 0.18/4.6
CONNECTOR Flying Lead
SENSITIVE LENGTH (INCH/MM) 0.75/19.1
FILL GAS Argon, Nitrogen
FILL PRESSURE (TORR) 760

Neutron Sensitive Material

ENRICHMENT (%) >93
MATERIAL U235
TOTAL QUANTITY (MG) 0.023

Operating Characteristics

RECOMMENDED OPERATING VOLTAGE (VOLTS) 500
OPERATING VOLTAGE RANGE (VOLTS) 200-800
BACKGROUND (COUNTS) 0.6
PULSE RISE TIME (NANOSECONDS) 200
NEUTRON SENSITIVITY (COUNTS/1E5 NEUTRONS) 1
