3057

General Specifications

CATHODE MATERIAL (INTERNAL/EXTERNAL) Aluminum
CONNECTOR BNC
FILL GAS Argon, Nitrogen
FILL PRESSURE (TORR) 760

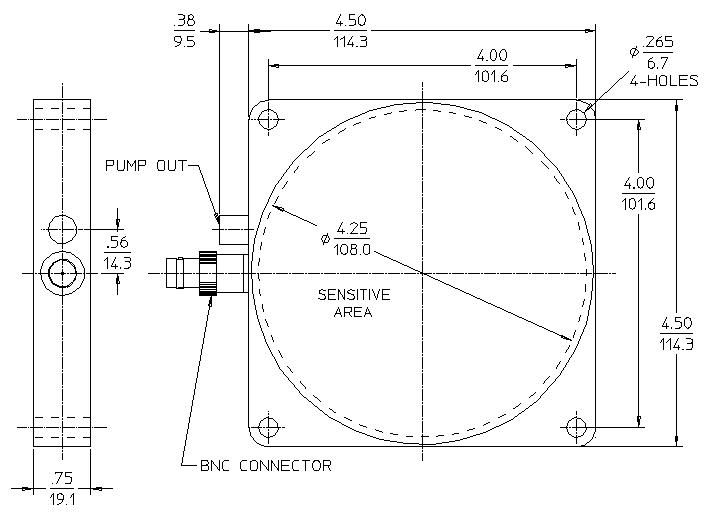

MAXIMUM WIDTH (INCH/MM) 4.5/114.3
MAXIMUM HEIGHT (INCH/MM) 5.56/141.2
MAXIMUM DEPTH (INCH/MM) 0.75/19.1
SENSITIVE DIAMETER (INCH/MM) 4.25/108.0

Neutron Sensitive Material

ENRICHMENT (%) >93
MATERIAL U235
TOTAL QUANTITY (MG) 0.013

Operating Characteristics

RECOMMENDED OPERATING VOLTAGE (VOLTS) 300
OPERATING VOLTAGE RANGE (VOLTS) 50-500
BACKGROUND (COUNTS) 1
NEUTRON SENSITIVITY (COUNTS/1E7 NEUTRONS) 1
