2823

General Specifications

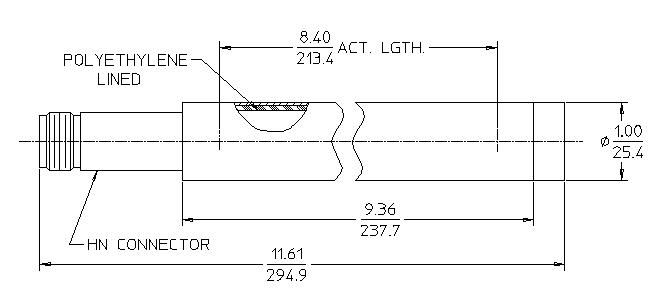

MAXIMUM LENGTH (INCH/MM) 11.61/294.9
MAXIMUM DIAMETER (INCH/MM) 1.0/25.4
GAS FILLING Argon + CH4
EFFECTIVE LENGTH (INCH/MM) 8.4/213.4
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
CONNECTOR HN
OPERATING TEMPERATURE RANGE °C -20 to +50
GAS PRESSURE (TORR) 432

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1100
OPERATING VOLTAGE RANGE (VOLTS) 1000 - 1250
TUBE CAPACITANCE (PF) 4
SENSITIVITY (CPS/NV) 0.45
PLATEAU LENGTH (VOLTS) 250
PLATEAU SLOPE (%/100 VOLTS) 1
