281

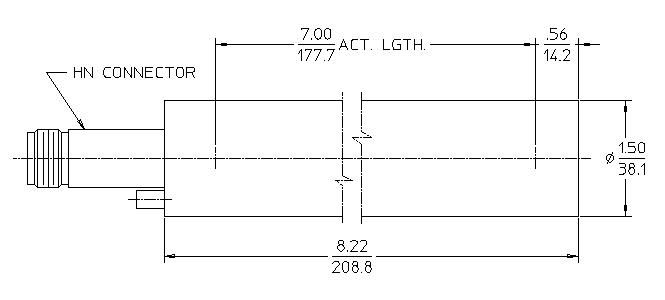

General Specifications

MAXIMUM LENGTH (INCH/MM) 10.0/254.0
MAXIMUM DIAMETER (INCH/MM) 1.5/38.1
GAS FILLING H + CH4 + N2
EFFECTIVE LENGTH (INCH/MM) 7.0/177.8
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
CONNECTOR HN
OPERATING TEMPERATURE RANGE °C -50 to +75
GAS PRESSURE (TORR) 3240

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 2500
OPERATING VOLTAGE RANGE (VOLTS) 2400 - 2650
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 1
TUBE CAPACITANCE (PF) 4
MAXIMUM RESOLUTION (% FWHM) 10
