2802

General Specifications

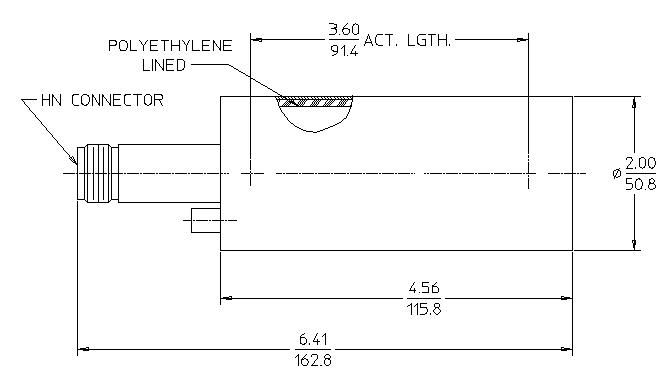

MAXIMUM LENGTH (INCH/MM) 6.44/163.6
MAXIMUM DIAMETER (INCH/MM) 2.0/50.8
GAS FILLING Argon + CH4
EFFECTIVE LENGTH (INCH/MM) 3.6/91.4
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
CONNECTOR HN
OPERATING TEMPERATURE RANGE °C -20 to +50
GAS PRESSURE (TORR) 432

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1000
OPERATING VOLTAGE RANGE (VOLTS) 900 - 1150
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 1
TUBE CAPACITANCE (PF) 4
SENSITIVITY (CPS/NV) 0.9
PLATEAU LENGTH (VOLTS) 250
