2801

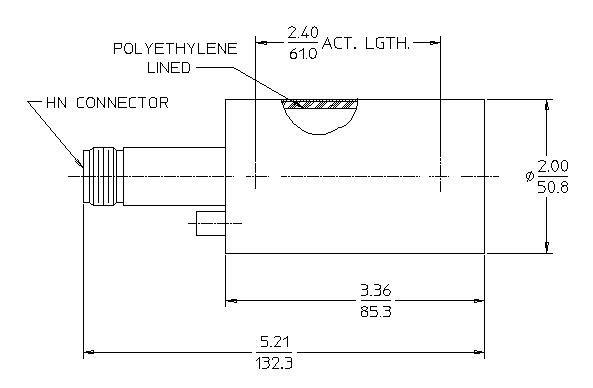

General Specifications

MAXIMUM LENGTH (INCH/MM) 5.24/133.1
MAXIMUM DIAMETER (INCH/MM) 2.0/50.8
GAS FILLING Argon + CH4
EFFECTIVE LENGTH (INCH/MM) 2.4/61.0
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
CONNECTOR HN
OPERATING TEMPERATURE RANGE °C -20 to +50
GAS PRESSURE (TORR) 432

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 850
OPERATING VOLTAGE RANGE (VOLTS) 750 - 1000
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 1
TUBE CAPACITANCE (PF) 3.5
SENSITIVITY (CPS/NV) 0.6
PLATEAU LENGTH (VOLTS) 250
