20361

Cylindrical Bf-3 Neutron Detector

General Specifications

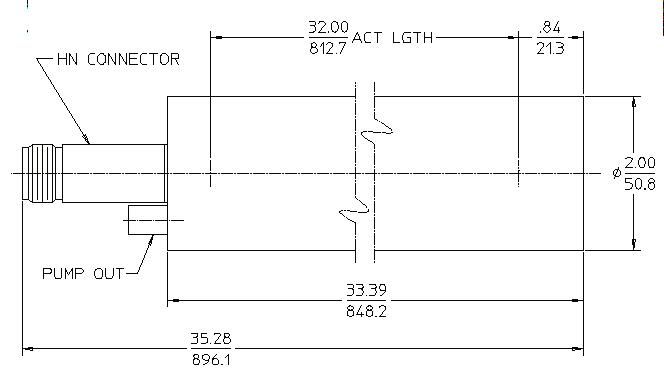

MAXIMUM LENGTH (INCH/MM) 35.28/896.1
MAXIMUM DIAMETER (INCH/MM) 2.0/50.8
EFFECTIVE LENGTH (INCH/MM) 32.00/812.7
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 1.96/49.78
CONNECTOR HN
OPERATING TEMPERATURE RANGE °C -40 to +100
GAS PRESSURE (TORR) at 21°C 456
EFFECTIVE VOLUME (CM³) 1581

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1600
OPERATING VOLTAGE RANGE (VOLTS) 1500 - 1750
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 3
TUBE CAPACITANCE (PF) 8.5
WEIGHT (GRAMS) 665
MAXIMUM RESOLUTION (% FWHM) 10

Thermal Neutron Sensitivity

SENSITIVITY (CPS/NV) N/A
