2533

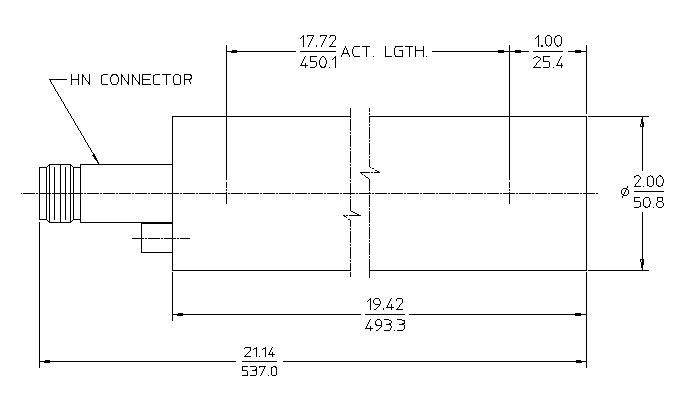

General Specifications

MAXIMUM LENGTH (INCH/MM) 21.34/542.04
MAXIMUM DIAMETER (INCH/MM) 2.0/50.8
EFFECTIVE LENGTH (INCH/MM) 17.72/450.09
CATHODE MATERIAL (INTERNAL/EXTERNAL) Aluminum
EFFECTIVE DIAMETER (INCH/MM) 1.88/47.75
CONNECTOR HN
OPERATING TEMPERATURE RANGE °C -50 to +100
GAS PRESSURE (TORR) 4560
EFFECTIVE VOLUME (CM³) 805.66

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1600
OPERATING VOLTAGE RANGE (VOLTS) 1500 - 1850
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 1
TUBE CAPACITANCE (PF) 4
MAXIMUM RESOLUTION (% FWHM) 10

Thermal Neutron Sensitivity

SENSITIVITY (CPS/NV) 185.0
