25323

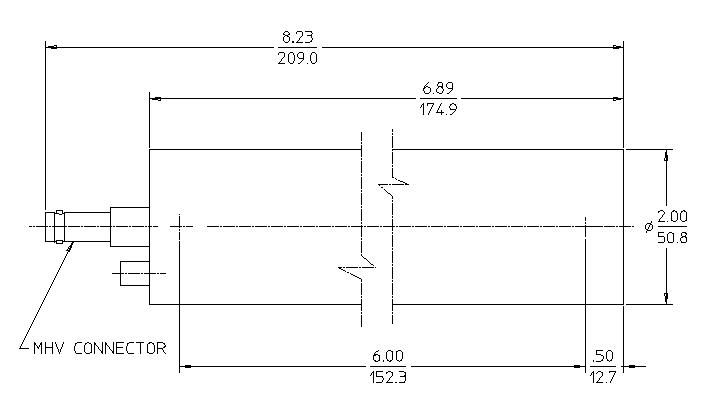

General Specifications

MAXIMUM LENGTH (INCH/MM) 8.25/209.55
MAXIMUM DIAMETER (INCH/MM) 2.0/50.8
EFFECTIVE LENGTH (INCH/MM) 6.0/152.4
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 1.96/49.78
CONNECTOR MHV
OPERATING TEMPERATURE RANGE °C -50 to +100
GAS PRESSURE (TORR) 1520
EFFECTIVE VOLUME (CM³) 296.51

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 800
OPERATING VOLTAGE RANGE (VOLTS) 700 - 1000
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 1
TUBE CAPACITANCE (PF) 7
WEIGHT (GRAMS) 300
MAXIMUM RESOLUTION (% FWHM) 10

Thermal Neutron Sensitivity

SENSITIVITY (CPS/NV) 46.0
