253165

General Specifications

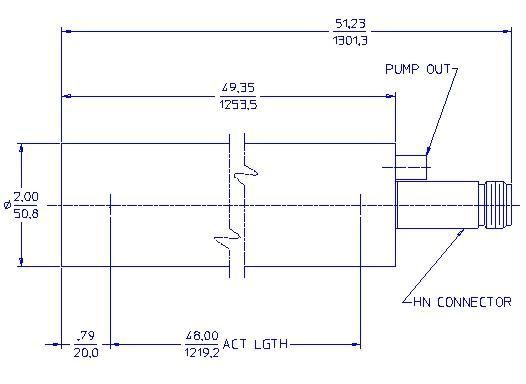

MAXIMUM LENGTH (INCH/MM) 51.23/1301.3
MAXIMUM DIAMETER (INCH/MM) 2.0/50.8
EFFECTIVE LENGTH (INCH/MM) 48.00/1219.2
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 1.96/49.78
CONNECTOR HN
OPERATING TEMPERATURE RANGE °C -50 to +100
GAS PRESSURE (TORR) 2052
EFFECTIVE VOLUME (CM³) 2372

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 950
OPERATING VOLTAGE RANGE (VOLTS) 850-1100
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 3
TUBE CAPACITANCE (PF) 8.5
WEIGHT (GRAMS) 906
MAXIMUM RESOLUTION (% FWHM) 6

Thermal Neutron Sensitivity

SENSITIVITY (CPS/NV) 427.0
