253148

General Specifications

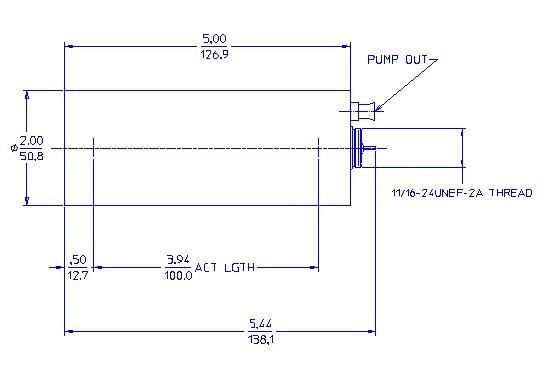

MAXIMUM LENGTH (INCH/MM) 5.44/138.1
MAXIMUM DIAMETER (INCH/MM) 2.0/50.8
EFFECTIVE LENGTH (INCH/MM) 3.94/100.0
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 1.96/49.78
CONNECTOR Pin
OPERATING TEMPERATURE RANGE °C -50 to +150
GAS PRESSURE (TORR) 3040
EFFECTIVE VOLUME (CM³) 194

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1150
OPERATING VOLTAGE RANGE (VOLTS) 1050 - 1300
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 3
TUBE CAPACITANCE (PF) 8.5
WEIGHT (GRAMS) 95
MAXIMUM RESOLUTION (% FWHM) 10

Thermal Neutron Sensitivity

SENSITIVITY (CPS/NV) 50
