253124

General Specifications

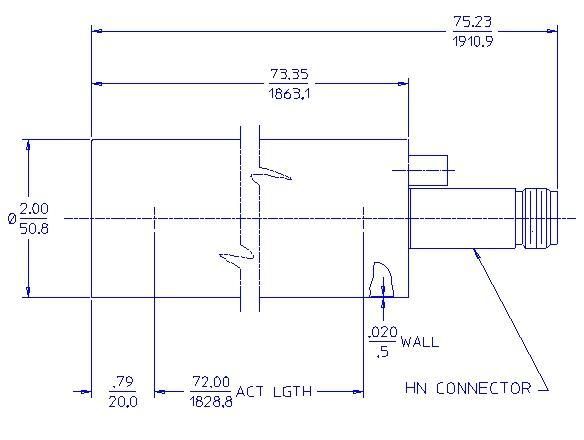

MAXIMUM LENGTH (INCH/MM) 75.23/1910.8
MAXIMUM DIAMETER (INCH/MM) 2.0/50.8
EFFECTIVE LENGTH (INCH/MM) 72.0/1828.8
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 1.96/49.78
CONNECTOR HN
OPERATING TEMPERATURE RANGE °C -50 to +100
GAS PRESSURE (TORR) 2099
EFFECTIVE VOLUME (CM³) 3558

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1000
OPERATING VOLTAGE RANGE (VOLTS) 900-1150
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 3
TUBE CAPACITANCE (PF) 8.5
WEIGHT (GRAMS) 1359
MAXIMUM RESOLUTION (% FWHM) 6

Thermal Neutron Sensitivity

SENSITIVITY (CPS/NV) 640
