253113

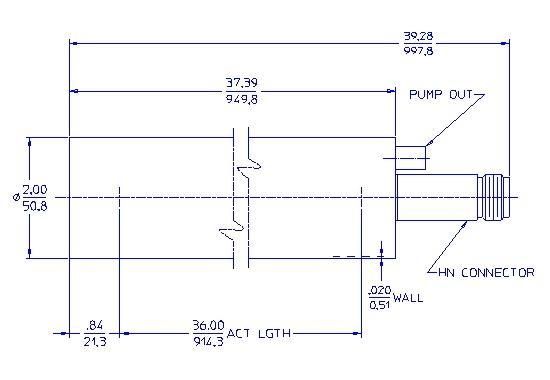

General Specifications

MAXIMUM LENGTH (INCH/MM) 39.28/997.8
MAXIMUM DIAMETER (INCH/MM) 2.0/50.8
EFFECTIVE LENGTH (INCH/MM) 36.00/914.3
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 1.96/49.78
CONNECTOR HN
OPERATING TEMPERATURE RANGE °C -50 to +100
GAS PRESSURE (TORR) 2280
EFFECTIVE VOLUME (CM³) 1783

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1000
OPERATING VOLTAGE RANGE (VOLTS) 900-1150
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 3
TUBE CAPACITANCE (PF) 8.5
WEIGHT (GRAMS) 745
MAXIMUM RESOLUTION (% FWHM) 6

Thermal Neutron Sensitivity

SENSITIVITY (CPS/NV) 346.0
