25311
Cylindrical he3 neutron spectrometry detector

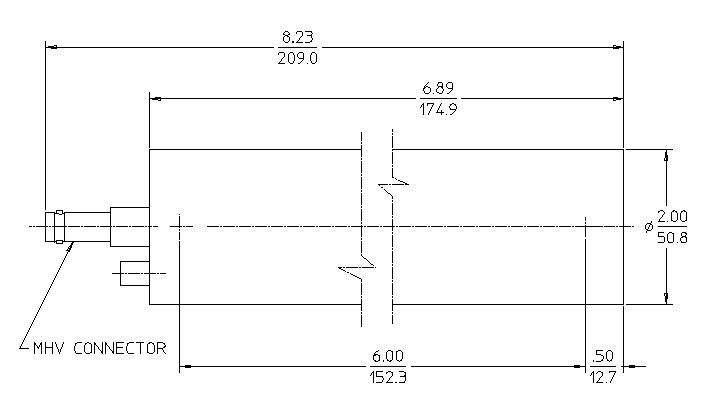

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
8.25/209.55 |
| MAXIMUM DIAMETER (INCH/MM) |
2.0/50.8 |
| EFFECTIVE LENGTH (INCH/MM) |
6.0/152.4 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
1.88/47.75 |
| CONNECTOR |
MHV |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| GAS PRESSURE (TORR) at 21°C |
4560 |
| EFFECTIVE VOLUME (CM³) |
272.8 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1650 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1550 - 1800 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
1 |
| TUBE CAPACITANCE (PF) |
7 |
| WEIGHT (GRAMS) |
300 |
| MAXIMUM RESOLUTION (% FWHM) |
6 |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
72.0 |
