253

General Specifications

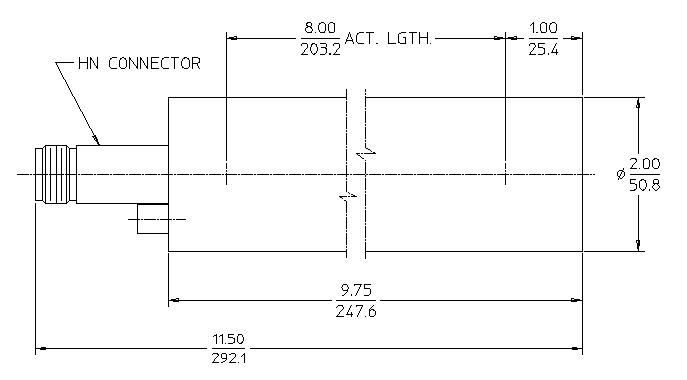

MAXIMUM LENGTH (INCH/MM) 11.5/292.1
MAXIMUM DIAMETER (INCH/MM) 2.0/50.8
EFFECTIVE LENGTH (INCH/MM) 8.0/203.2
CATHODE MATERIAL (INTERNAL/EXTERNAL) Aluminum
EFFECTIVE DIAMETER (INCH/MM) 1.88/47.75
CONNECTOR HN
OPERATING TEMPERATURE RANGE °C -50 to +100
GAS PRESSURE (TORR) 3040
EFFECTIVE VOLUME (CM³) 363.73

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1300
OPERATING VOLTAGE RANGE (VOLTS) 1200 - 1450
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 1
TUBE CAPACITANCE (PF) 8
WEIGHT (GRAMS) 396
MAXIMUM RESOLUTION (% FWHM) 6

Thermal Neutron Sensitivity

SENSITIVITY (CPS/NV) 69.0
