2525

General Specifications

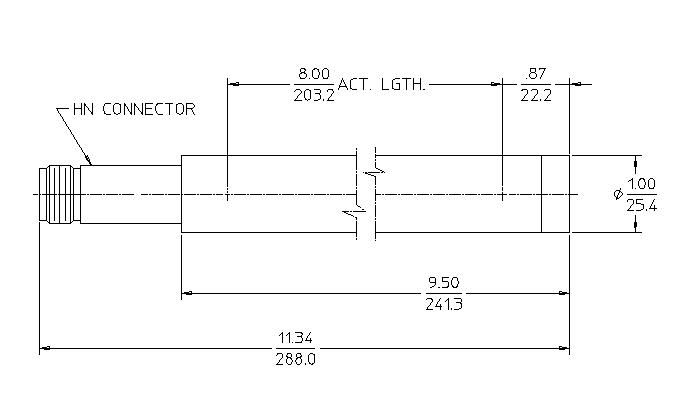

MAXIMUM LENGTH (INCH/MM) 11.34/288.04
MAXIMUM DIAMETER (INCH/MM) 1.0/25.4
EFFECTIVE LENGTH (INCH/MM) 8.0/203.2
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 0.96/24.38
CONNECTOR HN
OPERATING TEMPERATURE RANGE °C -50 to +150
GAS PRESSURE (TORR) 15200
EFFECTIVE VOLUME (CM³) 94.84

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 2200
OPERATING VOLTAGE RANGE (VOLTS) 2100 - 2400
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 1
TUBE CAPACITANCE (PF) 8
WEIGHT (GRAMS) 170
MAXIMUM RESOLUTION (% FWHM) 10

Thermal Neutron Sensitivity

SENSITIVITY (CPS/NV) 49.0
