2523

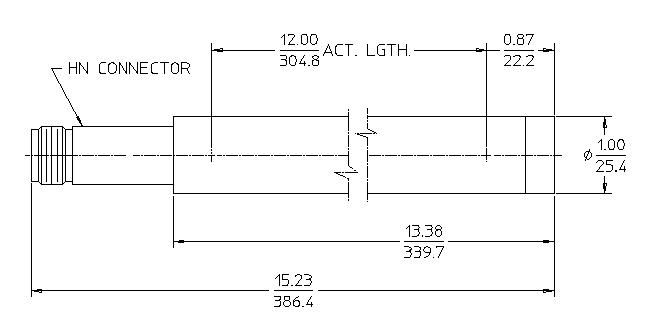

General Specifications

MAXIMUM LENGTH (INCH/MM) 15.55/394.97
MAXIMUM DIAMETER (INCH/MM) 1.0/25.4
EFFECTIVE LENGTH (INCH/MM) 12.0/304.8
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 0.96/24.38
CONNECTOR HN
OPERATING TEMPERATURE RANGE °C -50 to +100
GAS PRESSURE (TORR) 7600
EFFECTIVE VOLUME (CM³) 142.26

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 4000
OPERATING VOLTAGE RANGE (VOLTS) 3000 - 5000
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 2
TUBE CAPACITANCE (PF) 8
WEIGHT (GRAMS) 420
MAXIMUM RESOLUTION (% FWHM) 10

Thermal Neutron Sensitivity

SENSITIVITY (CPS/NV) 67.0
