252248

General Specifications

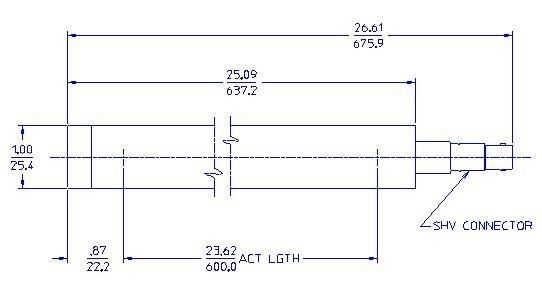

MAXIMUM LENGTH (INCH/MM) 26.61/675.9
MAXIMUM DIAMETER (INCH/MM) 1.0/25.4
EFFECTIVE LENGTH (INCH/MM) 23.62/600.0
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 0.96/24.38
CONNECTOR SHV
OPERATING TEMPERATURE RANGE °C -50 to +100
GAS PRESSURE (TORR) 15200
EFFECTIVE VOLUME (CM³) 142.26

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 2250
OPERATING VOLTAGE RANGE (VOLTS) 2150-2400
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 1
TUBE CAPACITANCE (PF) 8
WEIGHT (GRAMS) 375
MAXIMUM RESOLUTION (% FWHM) 7

Thermal Neutron Sensitivity

SENSITIVITY (CPS/NV) 144.0
