252242

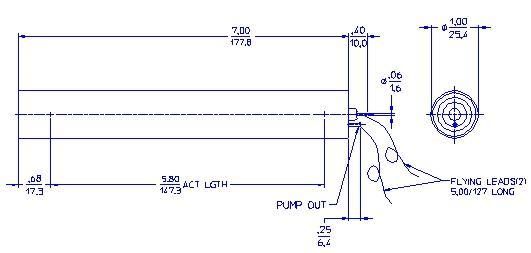

Cylindrical he3 neutron detector
General Specifications
| MAXIMUM LENGTH (INCH/MM) |
7.40/187.8 |
| MAXIMUM DIAMETER (INCH/MM) |
1.0/25.4 |
| EFFECTIVE LENGTH (INCH/MM) |
5.80/147.3 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
0.96/24.38 |
| CONNECTOR |
Flying Lead |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| GAS PRESSURE (TORR) at 21°C |
4560 |
| EFFECTIVE VOLUME (CM³) |
69 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
850 |
| OPERATING VOLTAGE RANGE (VOLTS) |
750 - 1000 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
1 |
| TUBE CAPACITANCE (PF) |
8 |
| WEIGHT (GRAMS) |
90 |
| MAXIMUM RESOLUTION (% FWHM) |
10 |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
N/A |
