252238
Cylindrical he3 neutron detector

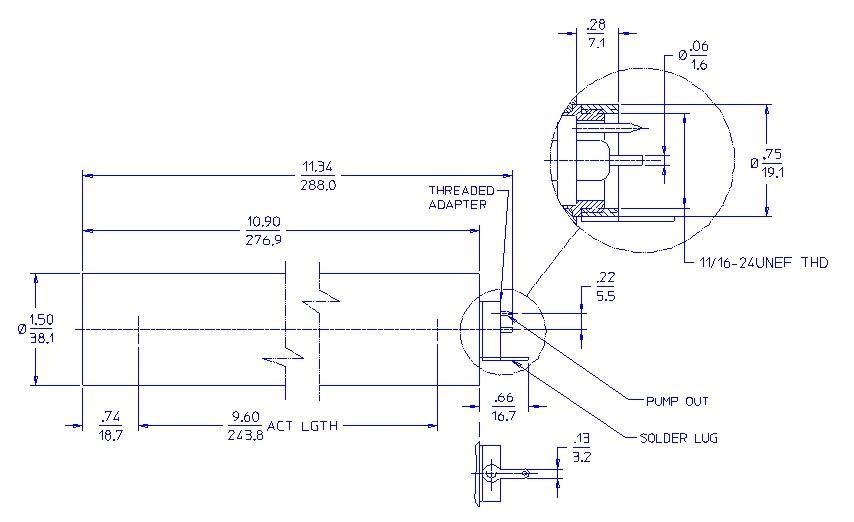

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
11.34/288.04 |
| MAXIMUM DIAMETER (INCH/MM) |
1.5/38.1 |
| EFFECTIVE LENGTH (INCH/MM) |
9.60/243.8 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
1.43/36.3 |
| CONNECTOR |
Pin |
| OPERATING TEMPERATURE RANGE °C |
-50 to +150 |
| GAS PRESSURE (TORR) at 21°C |
6080 |
| EFFECTIVE VOLUME (CM³) |
263 |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
70 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1350 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1250 - 1500 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
1 |
| WEIGHT (GRAMS) |
220 |
| CAPACITANCE (PF) |
8 |
| MAXIMUM RESOLUTION (% FWHM) |
10 |
