252188

General Specifications

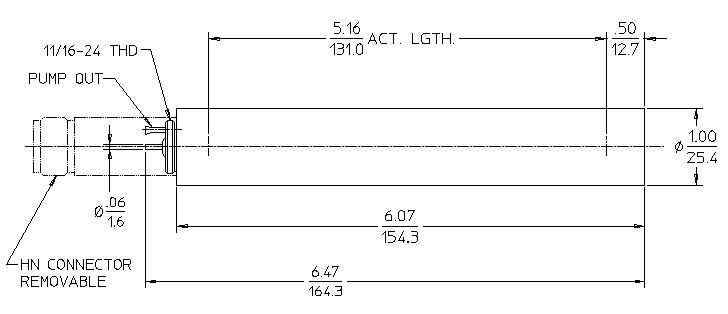

MAXIMUM LENGTH (INCH/MM) 6.47/164.3
MAXIMUM DIAMETER (INCH/MM) 1.0/25.4
EFFECTIVE LENGTH (INCH/MM) 5.16/131.0
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 0.96/24.38
CONNECTOR HN Optional
OPERATING TEMPERATURE RANGE °C -50 to +100
GAS PRESSURE (TORR) 15200
EFFECTIVE VOLUME (CM³) 61.17

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1620
OPERATING VOLTAGE RANGE (VOLTS) 1500 - 1750
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 1
TUBE CAPACITANCE (PF) 4
WEIGHT (GRAMS) 178
MAXIMUM RESOLUTION (% FWHM) 10

Thermal Neutron Sensitivity

SENSITIVITY (CPS/NV) 31.0
