252129

General Specifications

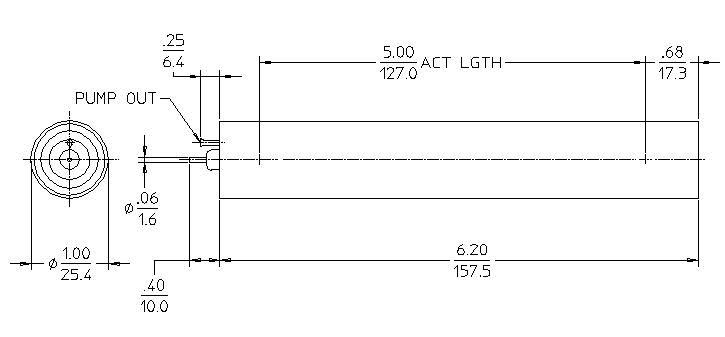

MAXIMUM LENGTH (INCH/MM) 6.60/167.64
MAXIMUM DIAMETER (INCH/MM) 1.0/25.4
EFFECTIVE LENGTH (INCH/MM) 5.0/127.0
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 0.96/24.38
CONNECTOR Pin
OPERATING TEMPERATURE RANGE °C -25 to +150
GAS PRESSURE (TORR) 3040
EFFECTIVE VOLUME (CM³) 59.28

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 700
OPERATING VOLTAGE RANGE (VOLTS) 600 - 850
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 1
TUBE CAPACITANCE (PF) 8
WEIGHT (GRAMS) 200
MAXIMUM RESOLUTION (% FWHM) 8

Thermal Neutron Sensitivity

SENSITIVITY (CPS/NV) 18.0
