252111

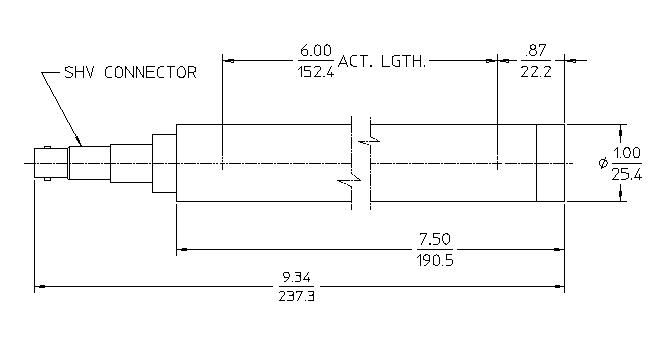

General Specifications

MAXIMUM LENGTH (INCH/MM) 9.34/237.24
MAXIMUM DIAMETER (INCH/MM) 1.0/25.4
EFFECTIVE LENGTH (INCH/MM) 6.0/152.4
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 0.93/23.62
CONNECTOR SHV
OPERATING TEMPERATURE RANGE °C -50 to +150
GAS PRESSURE (TORR) 3040
EFFECTIVE VOLUME (CM³) 66.76

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1200
OPERATING VOLTAGE RANGE (VOLTS) 1100 - 1300
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 1
TUBE CAPACITANCE (PF) 8
WEIGHT (GRAMS) 200
MAXIMUM RESOLUTION (% FWHM) 10

Thermal Neutron Sensitivity

SENSITIVITY (CPS/NV) 21.0
