2521

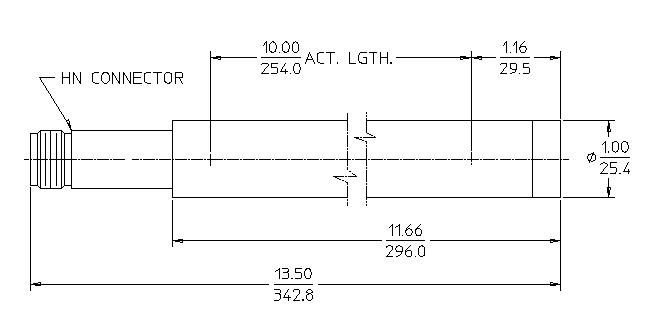

General Specifications

MAXIMUM LENGTH (INCH/MM) 13.55/344.17
MAXIMUM DIAMETER (INCH/MM) 1.0/25.4
EFFECTIVE LENGTH (INCH/MM) 10.0/254.0
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 0.96/24.38
CONNECTOR HN
OPERATING TEMPERATURE RANGE °C -50 to +100
GAS PRESSURE (TORR) 7600
EFFECTIVE VOLUME (CM³) 118.55

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 3500
OPERATING VOLTAGE RANGE (VOLTS) 3300 - 3800
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 1
TUBE CAPACITANCE (PF) 8
WEIGHT (GRAMS) 285
MAXIMUM RESOLUTION (% FWHM) 8

Thermal Neutron Sensitivity

SENSITIVITY (CPS/NV) 56.0
