252

General Specifications

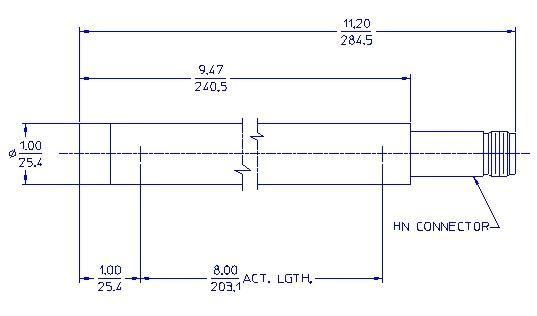

MAXIMUM LENGTH (INCH/MM) 11.20/284.5
MAXIMUM DIAMETER (INCH/MM) 1.0/25.4
EFFECTIVE LENGTH (INCH/MM) 8.0/203.2
CATHODE MATERIAL (INTERNAL/EXTERNAL) Aluminum
EFFECTIVE DIAMETER (INCH/MM) 0.93/23.62
CONNECTOR HN
OPERATING TEMPERATURE RANGE °C -50 to +100
GAS PRESSURE (TORR) 3040
EFFECTIVE VOLUME (CM³) 89.01

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1150
OPERATING VOLTAGE RANGE (VOLTS) 1050 - 1400
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 1
TUBE CAPACITANCE (PF) 8
WEIGHT (GRAMS) 142
MAXIMUM RESOLUTION (% FWHM) 6

Thermal Neutron Sensitivity

SENSITIVITY (CPS/NV) 28.0
