25193

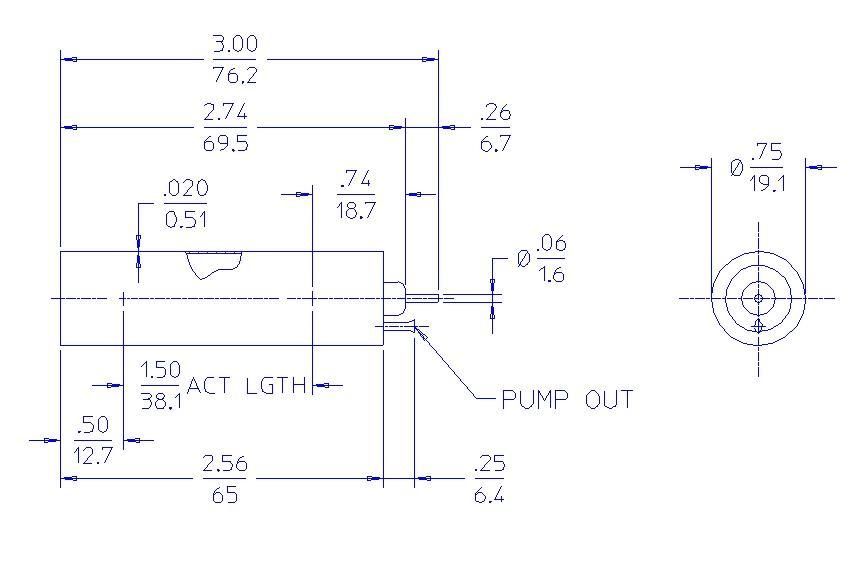

General Specifications

MAXIMUM LENGTH (INCH/MM) 3.00/76.2
MAXIMUM DIAMETER (INCH/MM) 0.75/19.05
EFFECTIVE LENGTH (INCH/MM) 1.5/38.1
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 0.71/18.03
CONNECTOR Pin
OPERATING TEMPERATURE RANGE °C -25 to +150
GAS PRESSURE (TORR) 7600
EFFECTIVE VOLUME (CM³) 9.73

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1050
OPERATING VOLTAGE RANGE (VOLTS) 950-1200
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 3
TUBE CAPACITANCE (PF) 3
WEIGHT (GRAMS) 25
MAXIMUM RESOLUTION (% FWHM) 10

Thermal Neutron Sensitivity

SENSITIVITY (CPS/NV) 5.3
