25185

General Specifications

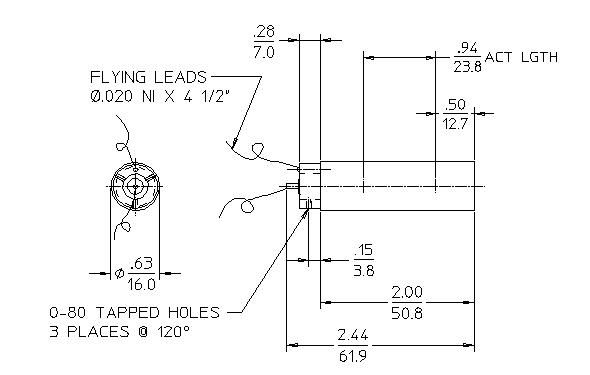

MAXIMUM LENGTH (INCH/MM) 2.44/61.9
MAXIMUM DIAMETER (INCH/MM) 0.63/16.0
EFFECTIVE LENGTH (INCH/MM) 0.94/23.88
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 0.61/15.49
CONNECTOR Flying Lead
OPERATING TEMPERATURE RANGE °C -40 to +80
GAS PRESSURE (TORR) 1520
EFFECTIVE VOLUME (CM³) 4.5

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 750
OPERATING VOLTAGE RANGE (VOLTS) 650 - 900
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 3
TUBE CAPACITANCE (PF) 4
WEIGHT (GRAMS) 85
MAXIMUM RESOLUTION (% FWHM) 25

Thermal Neutron Sensitivity

SENSITIVITY (CPS/NV) 0.6
