25177

General Specifications

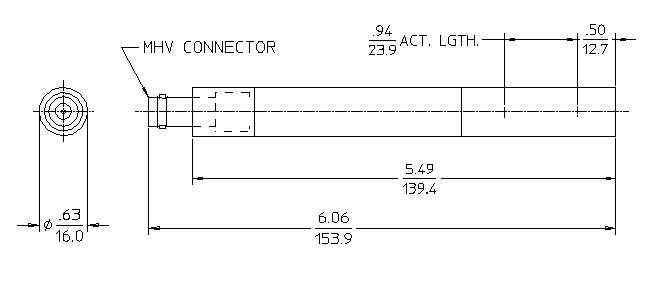

MAXIMUM LENGTH (INCH/MM) 6.06/153.9
MAXIMUM DIAMETER (INCH/MM) 0.63/16.0
EFFECTIVE LENGTH (INCH/MM) 0.94/23.88
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 0.61/15.49
CONNECTOR MHV
OPERATING TEMPERATURE RANGE °C -40 to +80
GAS PRESSURE (TORR) 3040
EFFECTIVE VOLUME (CM³) 4.5

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 850
OPERATING VOLTAGE RANGE (VOLTS) 750 - 1100
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 3
TUBE CAPACITANCE (PF) 4
WEIGHT (GRAMS) 125
MAXIMUM RESOLUTION (% FWHM) 25

Thermal Neutron Sensitivity

SENSITIVITY (CPS/NV) 1.0
