25163

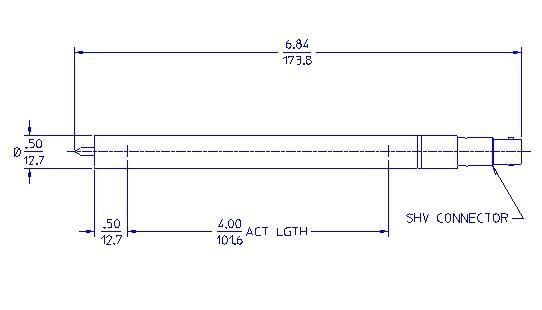

General Specifications

MAXIMUM LENGTH (INCH/MM) 6.84/173.8
MAXIMUM DIAMETER (INCH/MM) 0.50/12.7
EFFECTIVE LENGTH (INCH/MM) 4.0/101.6
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 0.45/11.4
CONNECTOR SHV
GAS PRESSURE (TORR) 15200
EFFECTIVE VOLUME (CM³) 10.42

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1400
OPERATING VOLTAGE RANGE (VOLTS) 1300-1550
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 1
TUBE CAPACITANCE (PF) 4
MAXIMUM RESOLUTION (% FWHM) 6

Thermal Neutron Sensitivity

SENSITIVITY (CPS/NV) 8.1
