25141

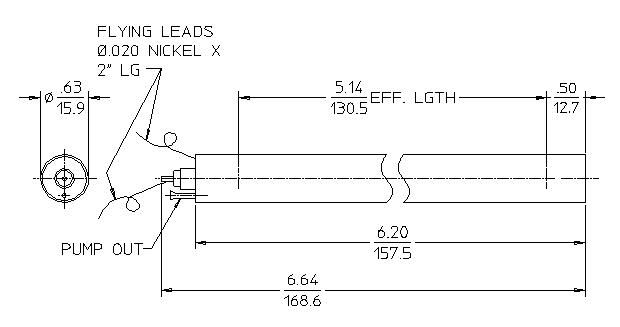

General Specifications

MAXIMUM LENGTH (INCH/MM) 6.64/168.66
MAXIMUM DIAMETER (INCH/MM) 0.63/16.0
EFFECTIVE LENGTH (INCH/MM) 5.14/130.56
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 0.61/15.49
CONNECTOR Flying Lead
OPERATING TEMPERATURE RANGE °C -50 to +100
GAS PRESSURE (TORR) 2666.7
EFFECTIVE VOLUME (CM³) 24.6

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 630
OPERATING VOLTAGE RANGE (VOLTS) 500 - 800
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 1
TUBE CAPACITANCE (PF) 8
WEIGHT (GRAMS) 90
MAXIMUM RESOLUTION (% FWHM) 6

Thermal Neutron Sensitivity

SENSITIVITY (CPS/NV) 5.2
