25128

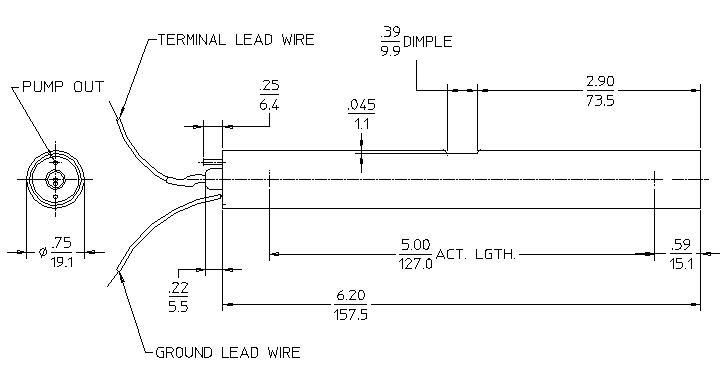

General Specifications

MAXIMUM LENGTH (INCH/MM) 6.45/163.83
MAXIMUM DIAMETER (INCH/MM) 0.75/19.05
EFFECTIVE LENGTH (INCH/MM) 5.0/127.0
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 0.71/18.03
CONNECTOR Flying Lead
OPERATING TEMPERATURE RANGE °C -25 to +150
GAS PRESSURE (TORR) 2172
EFFECTIVE VOLUME (CM³) 32.42

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 700
OPERATING VOLTAGE RANGE (VOLTS) 600 - 850
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 1
TUBE CAPACITANCE (PF) 3
WEIGHT (GRAMS) 100
MAXIMUM RESOLUTION (% FWHM) 6

Thermal Neutron Sensitivity

SENSITIVITY (CPS/NV) 7.6
