2508

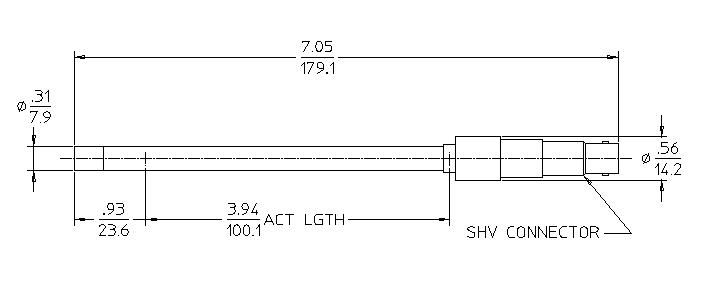

General Specifications

MAXIMUM LENGTH (INCH/MM) 7.05/179.1
MAXIMUM DIAMETER (INCH/MM) 0.56/14.2
EFFECTIVE LENGTH (INCH/MM) 3.94/100.0
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 0.25/6.35
CONNECTOR SHV
OPERATING TEMPERATURE RANGE °C -50 to +100
GAS PRESSURE (TORR) 30400
EFFECTIVE VOLUME (CM³) 3.17

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1900
OPERATING VOLTAGE RANGE (VOLTS) 1800 - 2050
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 1
TUBE CAPACITANCE (PF) 4
MAXIMUM RESOLUTION (% FWHM) 10

Thermal Neutron Sensitivity

SENSITIVITY (CPS/NV) 3.0
