23210

General Specifications

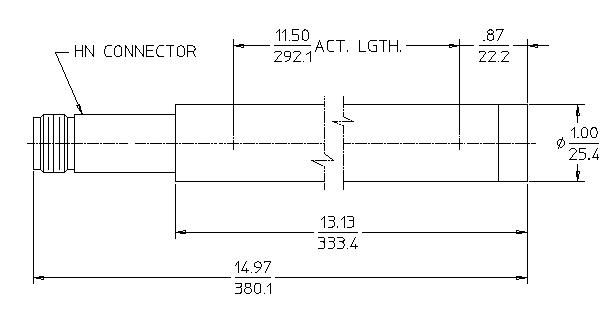

MAXIMUM LENGTH (INCH/MM) 14.97/380.2
MAXIMUM DIAMETER (INCH/MM) 1.0/25.4
GAS FILLING Argon
EFFECTIVE LENGTH (INCH/MM) 11.5/292.1
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 0.93/23.6
CONNECTOR HN
OPERATING TEMPERATURE RANGE °C -50 to +150
GAS PRESSURE (TORR) 200
EFFECTIVE VOLUME (CM³) 127.9

Operating Characteristics

RECOMMENDED OPERATING VOLTAGE (VOLTS) 800
OPERATING VOLTAGE RANGE (VOLTS) 700 - 950
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 30
TUBE CAPACITANCE (PF) 4
THERMAL NEUTRON SENSITIVITY (CPS/NV) 4.0
FLUX RANGE .25 - 1.0E4

Neutron Sensitive Material

COATING MATERIAL B10
ENRICHMENT (%) 96
COATED THICKNESS (MG/CM²) 0.5
COATED AREA (CM²) 78.0
