2311

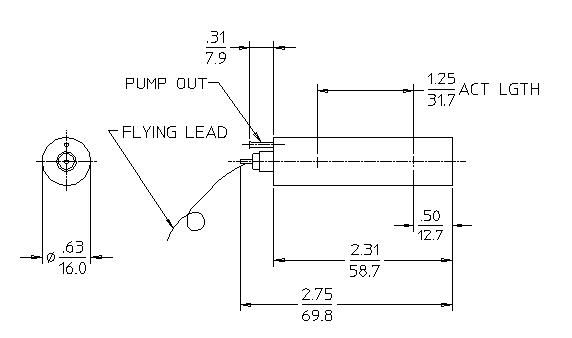

General Specifications

MAXIMUM LENGTH (INCH/MM) 2.75/69.9
MAXIMUM DIAMETER (INCH/MM) 0.63/16.0
GAS FILLING Argon
EFFECTIVE LENGTH (INCH/MM) 1.25/31.8
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 0.6/15.2
CONNECTOR Flying Lead
OPERATING TEMPERATURE RANGE °C -50 to +100
GAS PRESSURE (TORR) 760
EFFECTIVE VOLUME (CM³) 5.8

Operating Characteristics

RECOMMENDED OPERATING VOLTAGE (VOLTS) 850
OPERATING VOLTAGE RANGE (VOLTS) 750 - 1000
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 10
TUBE CAPACITANCE (PF) 4
THERMAL NEUTRON SENSITIVITY (CPS/NV) 0.25

Neutron Sensitive Material

COATING MATERIAL B10
ENRICHMENT (%) 96
COATED THICKNESS (MG/CM²) 0.5
COATED AREA (CM²) 6.0
