2232

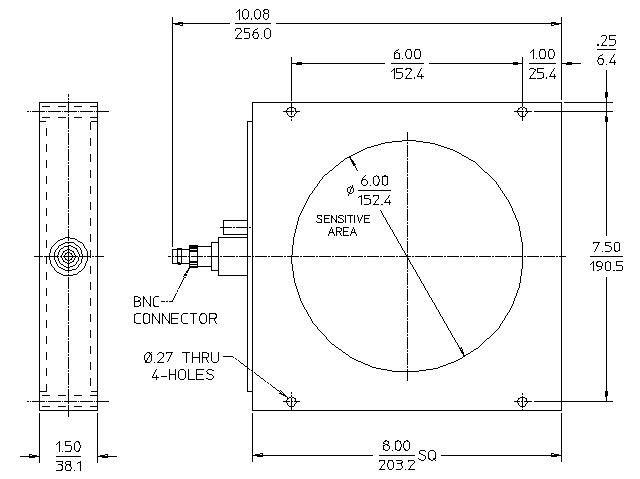

General Specifications

CATHODE MATERIAL (INTERNAL/EXTERNAL) Aluminum
CONNECTOR BNC
MAXIMUM WIDTH (INCH/MM) 8.0/203.2
MAXIMUM HEIGHT (INCH/MM) 10.08/256.0
MAXIMUM DEPTH (INCH/MM) 1.5/38.1
MAXIMUM OPERATING TEMPERATURE °C 80
SENSITIVE DIAMETER (INCH/MM) 6.0/152.4
PATH LENGTH (INCH/MM) 1.0/25.4
BF3 GAS PRESSURE (TORR) 1.7
ARGON GAS PRESSURE (TORR) 758.3

Window Specifications

MATERIAL Aluminum
THICKNESS (INCH/MM) 0.08/2.0
EFFECTIVE DIAMETER (INCH/MM) 6.0/152.4

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 950
OPERATING VOLTAGE RANGE (VOLTS) 850 - 1100
THERMAL NEUTRON SENSITIVITY (CPS/NV) 0.063
