221

General Specifications

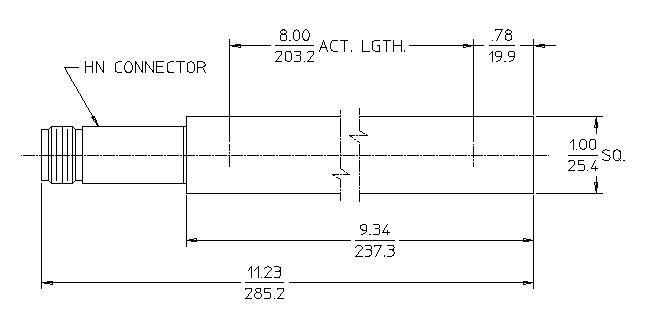

MAXIMUM LENGTH (INCH/MM) 11.23/285.24
EFFECTIVE LENGTH (INCH/MM) 8.0/203.2
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
CONNECTOR HN
OPERATING TEMPERATURE RANGE °C -50 to +100
MAXIMUM WIDTH (INCH/MM) 1.0/25.4
GAS PRESSURE (TORR) 400
EFFECTIVE VOLUME (CM³) 83.36
EFFECTIVE WIDTH (INCH/MM) 0.9/22.86

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1200
OPERATING VOLTAGE RANGE (VOLTS) 1100 - 1350
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 1
TUBE CAPACITANCE (PF) 7
WEIGHT (GRAMS) 340
MAXIMUM RESOLUTION (% FWHM) 8

Thermal Neutron Sensitivity

SENSITIVITY (CPS/NV) 1.9
