2042

GENERAL SPECIFICATIONS

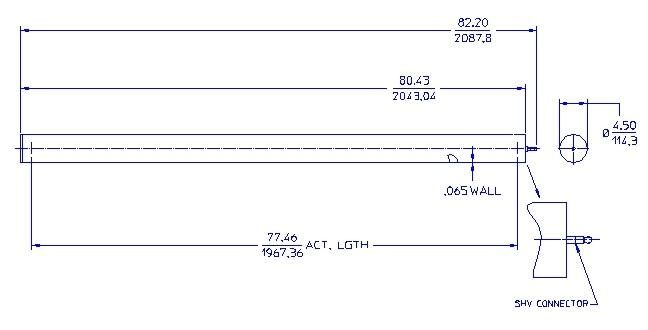

MAXIMUM LENGTH (INCH/MM) 82.20/2087.8
MAXIMUM DIAMETER (INCH/MM) 4.5/114.3
EFFECTIVE LENGTH (INCH/MM) 77.46/1967.36
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 4.37/111.0
CONNECTOR SHV
OPERATING TEMPERATURE RANGE °C -50 to +100
GAS PRESSURE (TORR) 700
EFFECTIVE VOLUME (CM³) 19027

ELECTRICAL SPECIFICATIONS

RECOMMENDED OPERATING VOLTAGE (VOLTS) 2600
OPERATING VOLTAGE RANGE (VOLTS) 2350-2850
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 1
TUBE CAPACITANCE (PF) 10

THERMAL NEUTRON SENSITIVITY

SENSITIVITY (CPS/NV) N/A
