20352

General Specifications

GAS PRESSURE (TORR) 700
CATHODE MATERIAL (INTERNAL/EXTERNAL) Aluminum

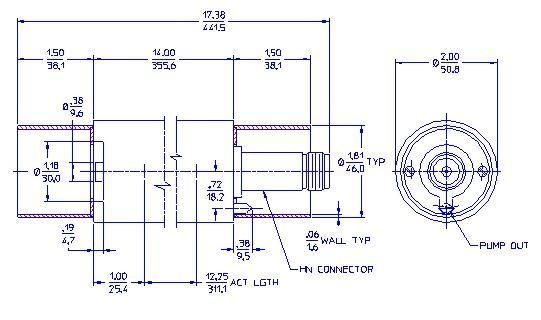

MAXIMUM LENGTH (INCH/MM) 17.38/441.5
EFFECTIVE LENGTH (INCH/MM) 12.25/311.15
MAXIMUM DIAMETER (INCH/MM) 2.0/50.8
EFFECTIVE DIAMETER (INCH/MM) 1.87/47.49
CONNECTOR HN
OPERATING TEMPERATURE RANGE °C -50 to +100

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 2150
OPERATING VOLTAGE RANGE (VOLTS) 1900 - 2400
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 1
MAXIMUM RESOLUTION (% FWHM) 50
TUBE CAPACITANCE (PF) 8
WEIGHT (GRAMS) 650

Thermal Neutron Sensitivity

SENSITIVITY (CPS/NV) 40
