20320

GENERAL SPECIFICATIONS

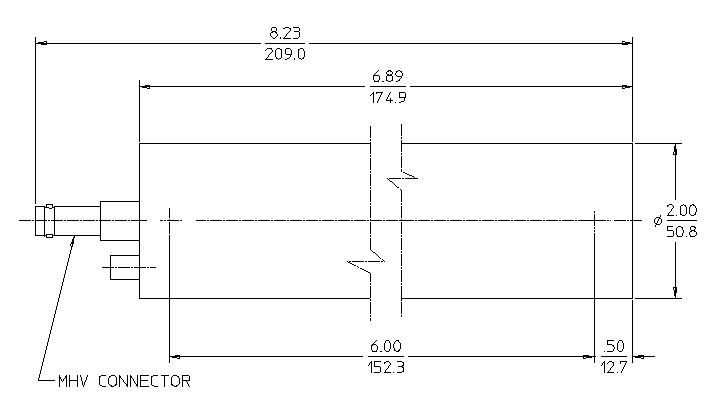

MAXIMUM LENGTH (INCH/MM) 8.23/209.0
MAXIMUM DIAMETER (INCH/MM) 2.0/50.8
EFFECTIVE LENGTH (INCH/MM) 6.0/152.4
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 1.93/49.0
CONNECTOR MHV
OPERATING TEMPERATURE RANGE °C -50 to +100
GAS PRESSURE (TORR) 350
BF3 ENRICHMENT (%)  96

ELECTRICAL SPECIFICATIONS

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1150
OPERATING VOLTAGE RANGE (VOLTS) 1050 - 1300
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 1
TUBE CAPACITANCE (PF) 3
WEIGHT (GRAMS) 121
MAXIMUM RESOLUTION (% FWHM) 15

THERMAL NEUTRON SENSITIVITY

SENSITIVITY (CPS/NV) 5.8
