20280

GENERAL SPECIFICATIONS

GAS PRESSURE (TORR) 600
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel

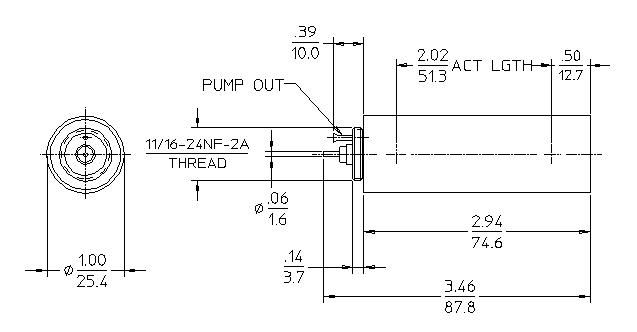

MAXIMUM LENGTH (INCH/MM) 3.46/87.8
EFFECTIVE LENGTH (INCH/MM) 2.02/51.3
MAXIMUM DIAMETER (INCH/MM) 1.0/25.4
EFFECTIVE DIAMETER (INCH/MM) 0.96/24.38
CONNECTOR Pin
CONNECTOR THREAD 11/16 - 24NF - 2A
OPERATING TEMPERATURE RANGE °C -50 to +100
EFFECTIVE VOLUME (CM³) 23.95

ELECTRICAL SPECIFICATIONS

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1300
OPERATING VOLTAGE RANGE (VOLTS) 1200 - 1450
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 2
MAXIMUM RESOLUTION (% FWHM) 10
TUBE CAPACITANCE (PF) 7

THERMAL NEUTRON SENSITIVITY

SENSITIVITY (CPS/NV) 1.5
