20262

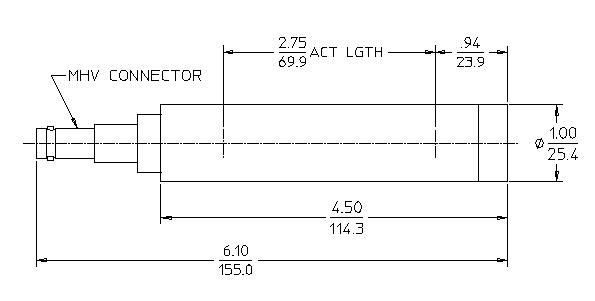

GENERAL SPECIFICATIONS

MAXIMUM LENGTH (INCH/MM) 6.16/156.4
MAXIMUM DIAMETER (INCH/MM) 1.0/25.4
EFFECTIVE LENGTH (INCH/MM) 2.75/70.0
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 0.96/24.38
CONNECTOR MHV
OPERATING TEMPERATURE RANGE °C -50 to +100
GAS PRESSURE (TORR) 600
EFFECTIVE VOLUME (CM³) 32.60

ELECTRICAL SPECIFICATIONS

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1700
OPERATING VOLTAGE RANGE (VOLTS) 1600 - 1850
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 1
TUBE CAPACITANCE (PF) 7
WEIGHT (GRAMS) 150
MAXIMUM RESOLUTION (% FWHM) 10

THERMAL NEUTRON SENSITIVITY

SENSITIVITY (CPS/NV) 2.15
