20254

GENERAL SPECIFICATIONS

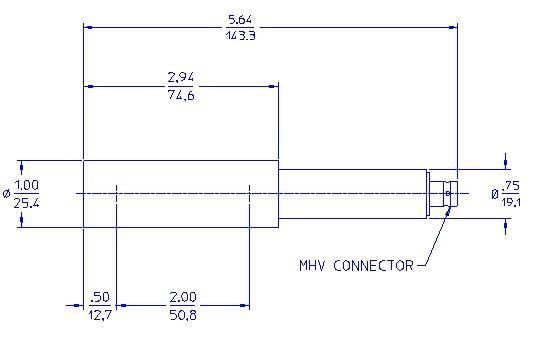

MAXIMUM LENGTH (INCH/MM) 5.64/143.3
MAXIMUM DIAMETER (INCH/MM) 1.0/25.4
EFFECTIVE LENGTH (INCH/MM) 2.0/50.8
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 0.96/24.4
CONNECTOR MHV
OPERATING TEMPERATURE RANGE °C -50 to +100
GAS PRESSURE (TORR) 600
EFFECTIVE VOLUME (CM³) 23.95

ELECTRICAL SPECIFICATIONS

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1300
OPERATING VOLTAGE RANGE (VOLTS) 1200-2000
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 3
TUBE CAPACITANCE (PF) 7
WEIGHT (GRAMS) 110

THERMAL NEUTRON SENSITIVITY

SENSITIVITY (CPS/NV) 1.7
