202119

GENERAL SPECIFICATIONS

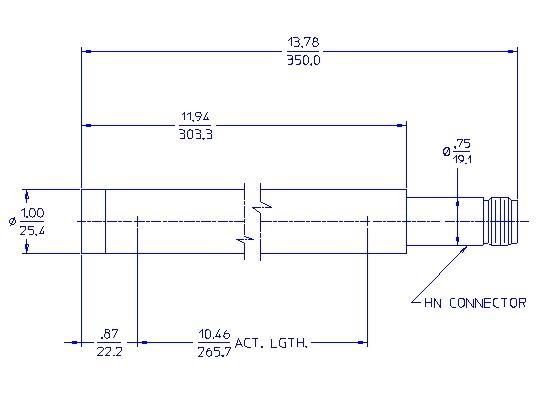

MAXIMUM LENGTH (INCH/MM) 13.78/350.0
MAXIMUM DIAMETER (INCH/MM) 1.0/25.4
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 0.96/24.38
OPERATING TEMPERATURE RANGE °C -50 to +100
GAS PRESSURE (TORR) 600
CONNECTOR HN
EFFECTIVE VOLUME (CM³) 137
EFFECTIVE LENGTH (INCH/MM) 10.46/265.7

ELECTRICAL SPECIFICATIONS

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1625
OPERATING VOLTAGE RANGE (VOLTS) 1525-1775
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 1
TUBE CAPACITANCE (PF) 7
WEIGHT (GRAMS) 175
MAXIMUM RESOLUTION (% FWHM) 10

THERMAL NEUTRON SENSITIVITY

SENSITIVITY (CPS/NV) 4.00
