202108

GENERAL SPECIFICATIONS

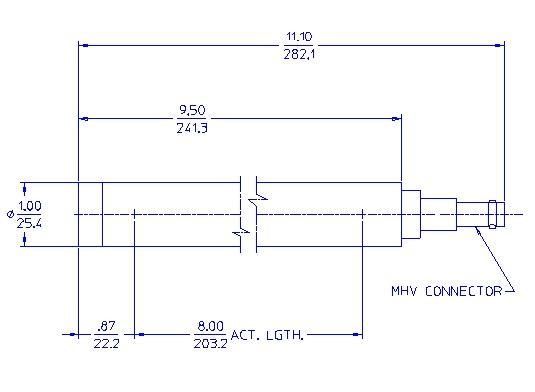

MAXIMUM LENGTH (INCH/MM) 11.10/282.1
MAXIMUM DIAMETER (INCH/MM) 1.0/25.4
EFFECTIVE LENGTH (INCH/MM) 8.0/203.2
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 0.96/24.38
CONNECTOR MHV
OPERATING TEMPERATURE RANGE °C -50 to +100
GAS PRESSURE (TORR) 400
EFFECTIVE VOLUME (CM³) 95

ELECTRICAL SPECIFICATIONS

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1300
OPERATING VOLTAGE RANGE (VOLTS) 1200 - 1450
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 3
TUBE CAPACITANCE (PF) 7
WEIGHT (GRAMS) 325
MAXIMUM RESOLUTION (% FWHM) 10

THERMAL NEUTRON SENSITIVITY

SENSITIVITY (CPS/NV) 4.37
