20110

GENERAL SPECIFICATIONS

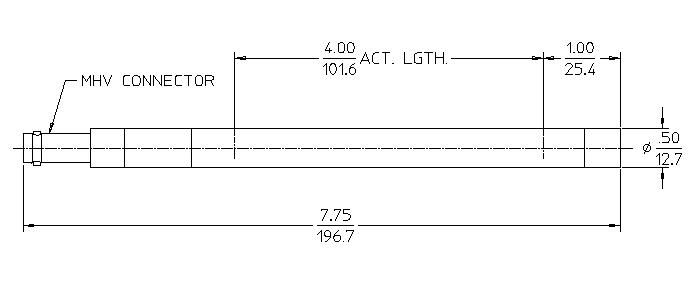

MAXIMUM LENGTH (INCH/MM) 7.75/196.85
MAXIMUM DIAMETER (INCH/MM) 0.5/12.7
EFFECTIVE LENGTH (INCH/MM) 4.0/101.60
CATHODE MATERIAL (INTERNAL/EXTERNAL) OFHC Copper
EFFECTIVE DIAMETER (INCH/MM) 0.44/11.07
CONNECTOR MHV
OPERATING TEMPERATURE RANGE °C -50 to +100
GAS PRESSURE (TORR) 700
EFFECTIVE VOLUME (CM³) 9.78

ELECTRICAL SPECIFICATIONS

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1200
OPERATING VOLTAGE RANGE (VOLTS) 1050 - 1300
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 1
TUBE CAPACITANCE (PF) 5
WEIGHT (GRAMS) 283
MAXIMUM RESOLUTION (% FWHM) 8

THERMAL NEUTRON SENSITIVITY

SENSITIVITY (CPS/NV) 0.39
