201

GENERAL SPECIFICATIONS

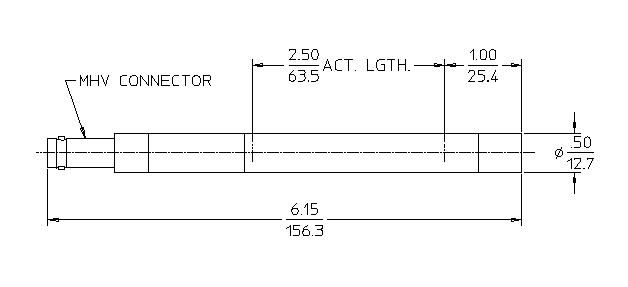

MAXIMUM LENGTH (INCH/MM) 6.15/156.21
MAXIMUM DIAMETER (INCH/MM) 0.5/12.7
EFFECTIVE LENGTH (INCH/MM) 2.5/63.5
CATHODE MATERIAL (INTERNAL/EXTERNAL) Aluminum
EFFECTIVE DIAMETER (INCH/MM) 0.43/10.92
CONNECTOR MHV
OPERATING TEMPERATURE RANGE °C -50 to +100
GAS PRESSURE (TORR) 550
EFFECTIVE VOLUME (CM³) 5.95

ELECTRICAL SPECIFICATIONS

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1350
OPERATING VOLTAGE RANGE (VOLTS) 1250 - 1500
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 1
TUBE CAPACITANCE (PF) 8
WEIGHT (GRAMS) 85
MAXIMUM RESOLUTION (% FWHM) 15

THERMAL NEUTRON SENSITIVITY

SENSITIVITY (CPS/NV) 0.19
