200

General Specifications

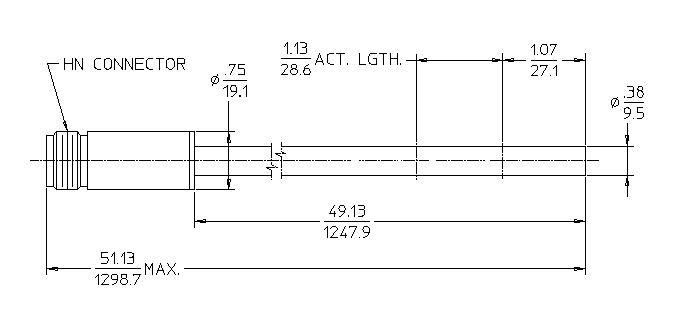

MAXIMUM LENGTH (INCH/MM) 51.13/1298.7
MAXIMUM DIAMETER (INCH/MM) 0.75/19.05
EFFECTIVE LENGTH (INCH/MM) 1.13/28.7
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 0.25/6.35
CONNECTOR HN
OPERATING TEMPERATURE RANGE °C -50 to +100
GAS PRESSURE (TORR) 1350
EFFECTIVE VOLUME (CM³) 0.91

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1250
OPERATING VOLTAGE RANGE (VOLTS) 1000 - 1500
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 2
TUBE CAPACITANCE (PF) 55
WEIGHT (GRAMS) 453

Thermal Neutron Sensitivity

SENSITIVITY (CPS/NV) 0.07
