52078

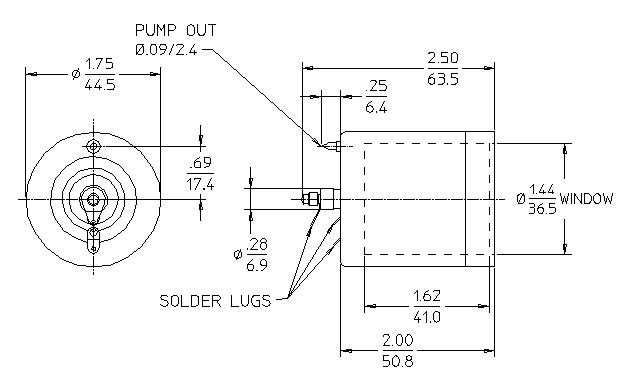

GENERAL SPECIFICATIONS

MAXIMUM LENGTH (INCH/MM) 2.50/63.5
MAXIMUM DIAMETER (INCH/MM) 1.75/44.5
EFFECTIVE LENGTH (INCH/MM) 1.62/41.0
CATHODE MATERIAL (INTERNAL/EXTERNAL) Aluminum
FILL GAS Xenon
FILL PRESSURE (TORR) 2280
ANODE CONNECTOR Solder Lug
CATHODE CONNECTOR Solder Lug
GUARD CONNECTOR Solder Lug
STORAGE TEMPERATURE RANGE (°C) -40 to 100
MINIMUM SHELF LIFE (YEARS) 2

WINDOW SPECIFICATIONS

MATERIAL Aluminum
THICKNESS (INCH/MM) .005/.127
EFFECTIVE DIAMETER (INCH/MM) 1.44/36.5

OPERATING CHARACTERISTICS

RECOMMENDED OPERATING VOLTAGE (VOLTS) 500
OPERATING TEMPERATURE RANGE °C 25 to 85
MAXIMUM OPERATING VOLTAGE (VOLTS) 800
GAMMA SENSITIVITY (A/R/HR - CO60) 7.5E-11
RESISTANCE - CATHODE TO GUARD (OHMS) >1.0E12
RESISTANCE - SIGNAL TO GUARD (OHMS) >1.0E14
