520164

GENERAL SPECIFICATIONS

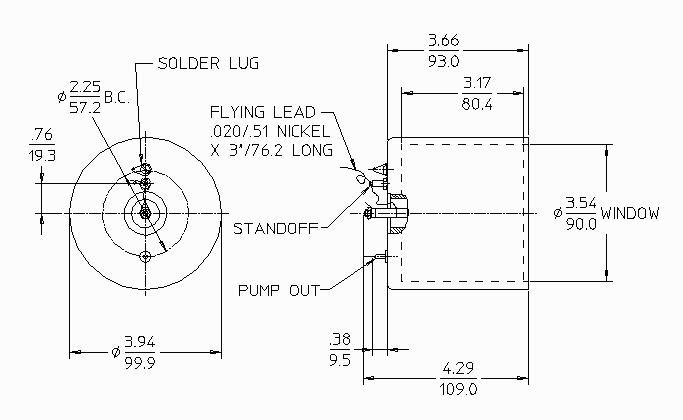

MAXIMUM LENGTH (INCH/MM) 4.11/104.3
MAXIMUM DIAMETER (INCH/MM) 3.94/99.9
EFFECTIVE LENGTH (INCH/MM) 3.03/76.8
CATHODE MATERIAL (INTERNAL/EXTERNAL) Aluminum
FILL GAS Xenon
FILL PRESSURE (TORR) 800
ANODE CONNECTOR Threaded Pin
CATHODE CONNECTOR Solder Pin
GUARD CONNECTOR Solder Pin
STORAGE TEMPERATURE RANGE (°C) -40 to +100
MINIMUM SHELF LIFE (YEARS) 2

WINDOW SPECIFICATIONS

MATERIAL Titanium
THICKNESS (INCH/MM) 0.00047/0.011
EFFECTIVE DIAMETER (INCH/MM) 3.54/90.0

OPERATING CHARACTERISTICS

RECOMMENDED OPERATING VOLTAGE (VOLTS) 500
OPERATING TEMPERATURE RANGE °C 25 to 85
MAXIMUM OPERATING VOLTAGE (VOLTS) 800
GAMMA SENSITIVITY (A/R/HR - CO60) 2.4E-10
RESISTANCE - SIGNAL ELECTRODE TO GUARD (OHMS) >1.0E13
RESISTANCE - CATHODE TO GUARD (OHMS) >1.0E12
