520157

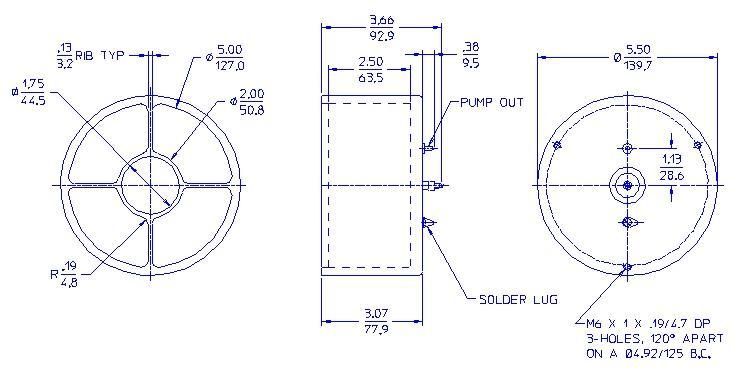

GENERAL SPECIFICATIONS

MAXIMUM LENGTH (INCH/MM) 3.66/92.6
MAXIMUM DIAMETER (INCH/MM) 5.5/139.7
EFFECTIVE LENGTH (INCH/MM) 2.5/63.5
CATHODE MATERIAL (INTERNAL/EXTERNAL) Aluminum
FILL GAS Xenon
FILL PRESSURE (TORR) 1520
ANODE CONNECTOR Threaded Pin
CATHODE CONNECTOR Solder Pin
GUARD CONNECTOR Solder Pin
STORAGE TEMPERATURE RANGE (°C) -40 to +100
MINIMUM SHELF LIFE (YEARS) 2

WINDOW SPECIFICATIONS

MATERIAL Titanium
THICKNESS (INCH/MM) 0.001 / 0.025
EFFECTIVE DIAMETER (INCH/MM) 5.0/127.0

OPERATING CHARACTERISTICS

RECOMMENDED OPERATING VOLTAGE (VOLTS) 500
OPERATING TEMPERATURE RANGE °C 25 to 85
MAXIMUM OPERATING VOLTAGE (VOLTS) 1000
GAMMA SENSITIVITY (A/R/HR - CO60) 9.0E-10
RESISTANCE - SIGNAL ELECTRODE TO GUARD (OHMS) >1.0E13
RESISTANCE - CATHODE TO GUARD (OHMS) >1.0E12
